Important Note for Installation: The controller you received may be an updated version, and its port positions could vary.(If you encounter any difficulties while connecting the wires, please contact customer service immediately.)

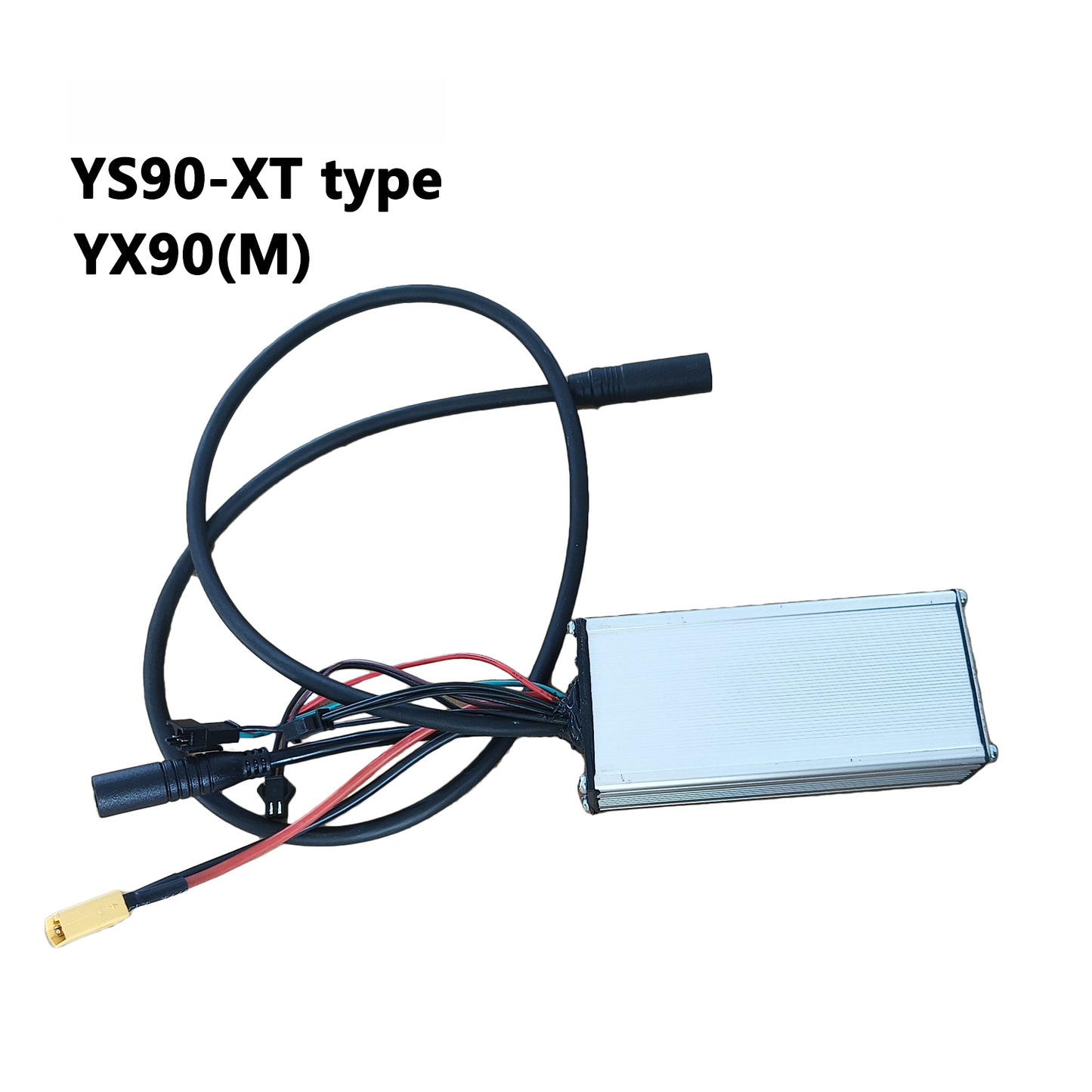

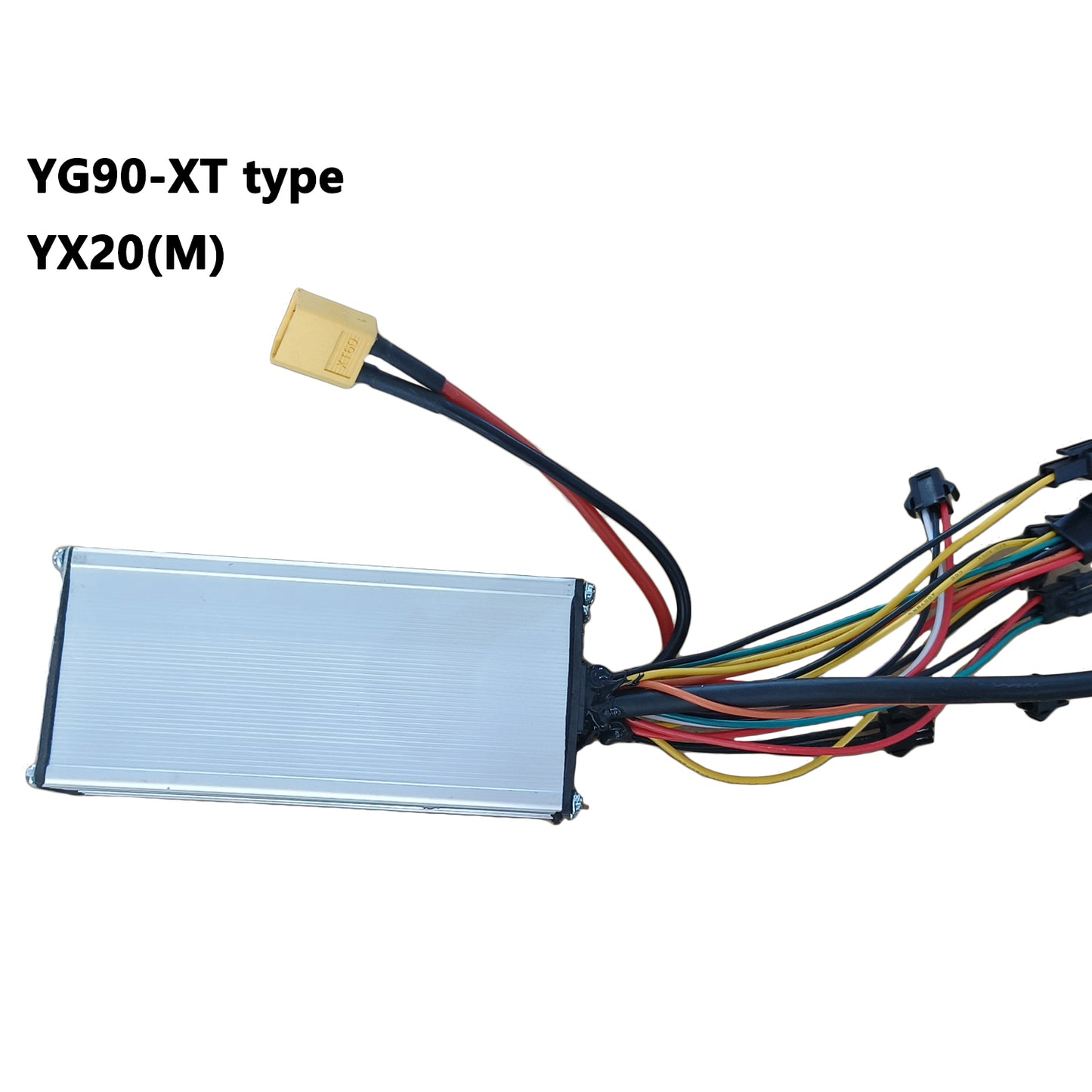

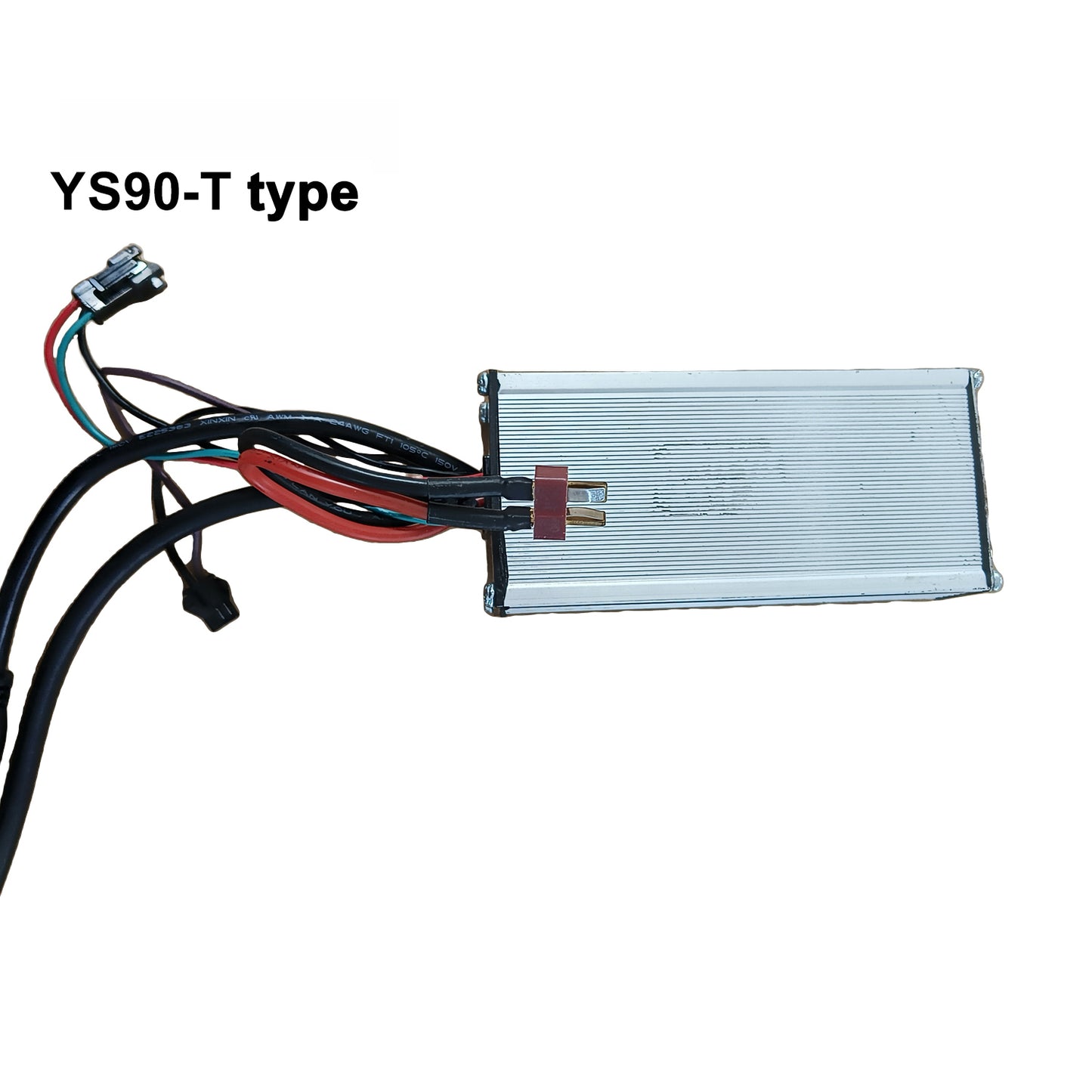

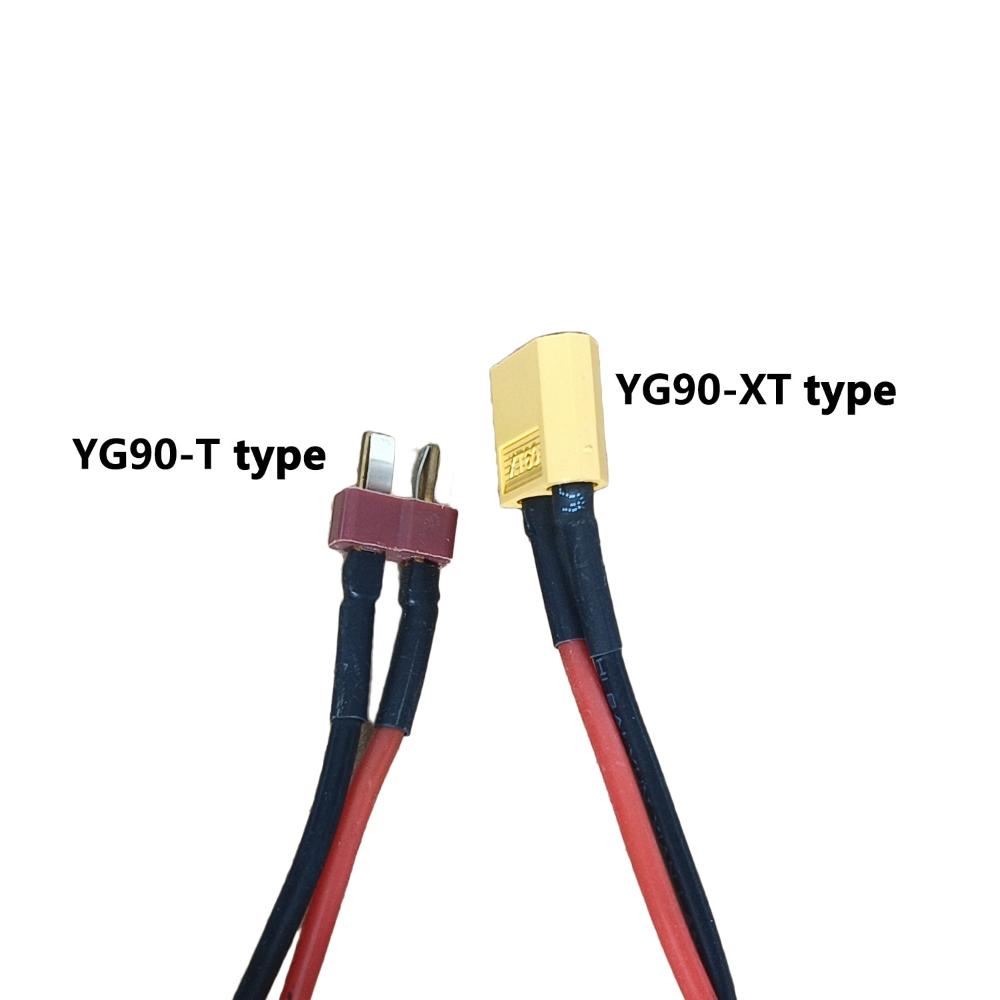

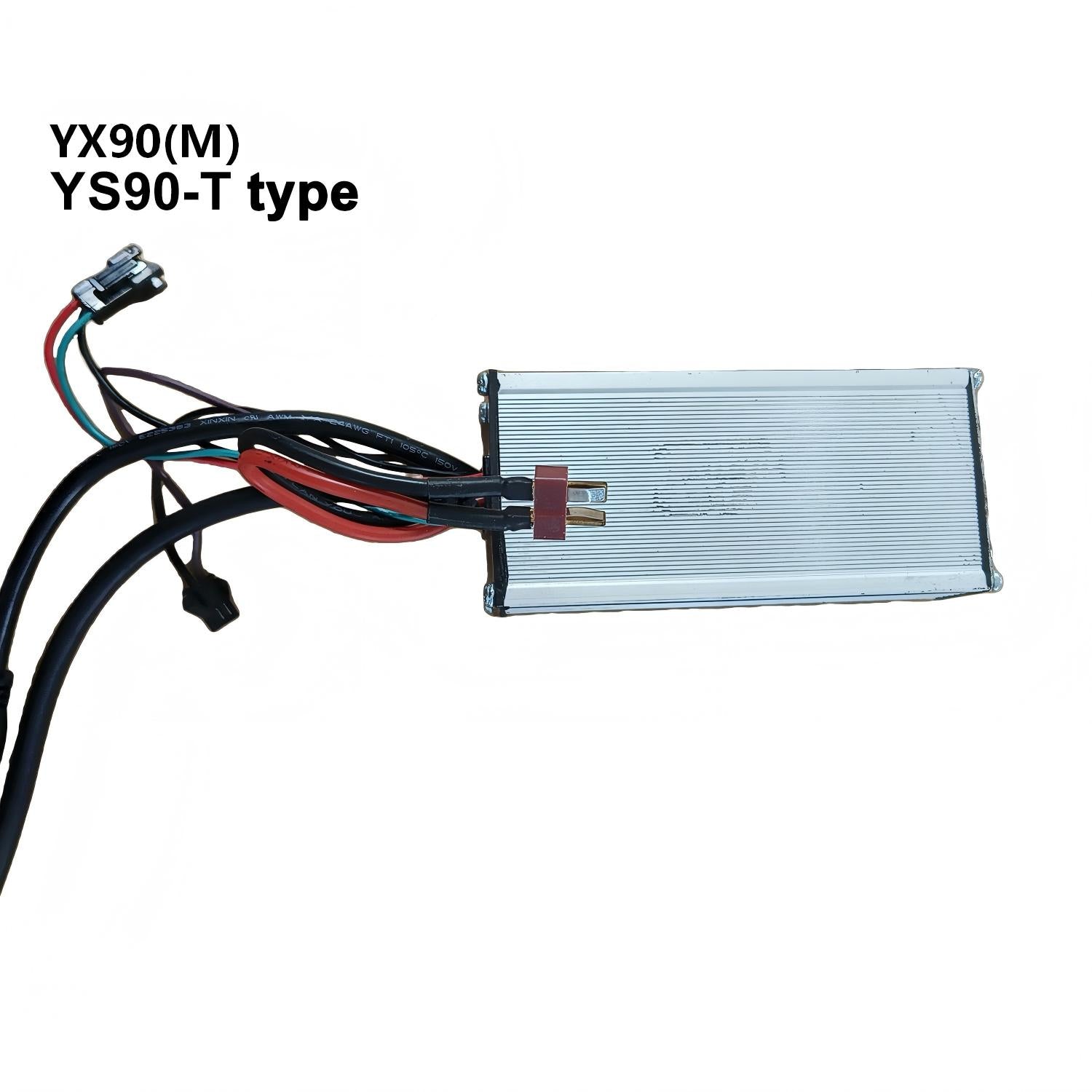

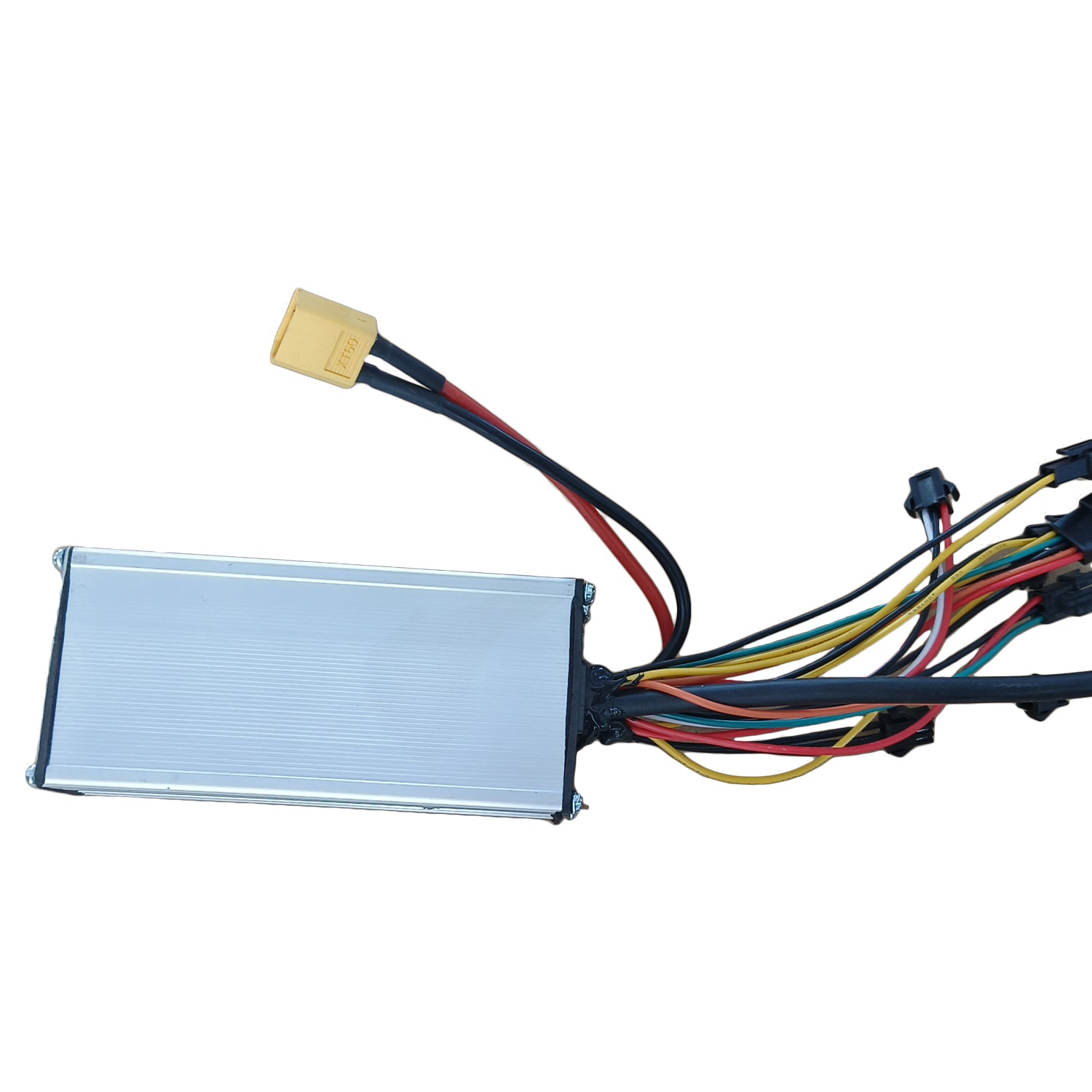

Please note that our controllers come with two types of connectors: T-type and XT-type. When placing your order, kindly make sure to specify the model type in the remarks section to ensure you receive the correct product. Thank you for your attention!
If you are unsure of the model, please send photos of the controller and the bicycle to customer service. Once we receive the photos, we will verify the details as soon as possible to ensure the parts are correct.
We cannot accept returns or refunds for incorrect model selection
- Before Purchase: Confirm the correct controller model for compatibility.
-
During Installation: Always follow the connection diagram we provided.
For any questions or need for support, please contact us.

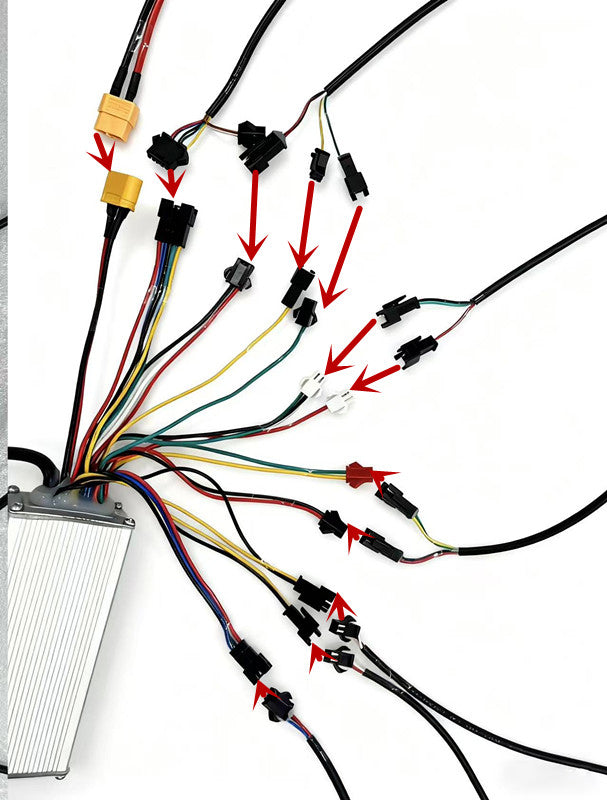

Wiring Connection Reference Diagram
